TR60+

TR60 or TR60+ as it is also referred to is a 'Composite Metal Deck' solution providing load spans of up to 3.6mts. unpropped for normal office loading conditions and is a premium product of JSWSMD. It is used as a design product offering best load spans in India currently for that depth of deck product. Product is 'Fire Tested' with 2 hours fire rating which can be extended up to 4 hours. It comes in gauges of 0.9mm, 1.0mm and 1.2mm and is available in S350 grade steel with 275 gsm galvanization .

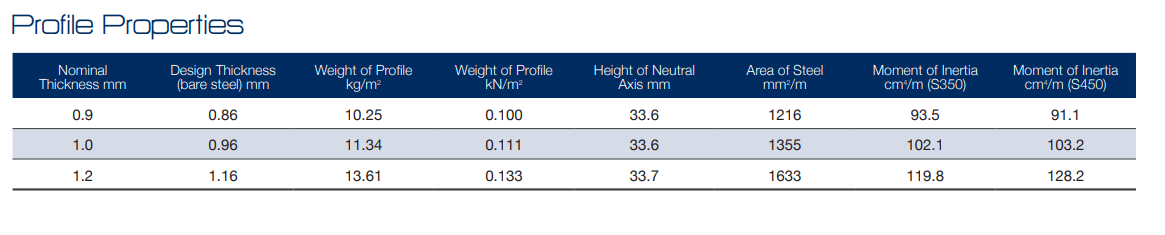

Details and Sectional Properties

The TR60 profile was JSWSMD's first trapezoidal profile, introduced to the product range in 1992. A further development of the profile in 2001 producing TR60+ reduced concrete volume and enhanced the speed of installation. The TR60+ profile enables un-propped spans in excess of 3.5m and is available in 0.9mm, 1.0mm and 1.2mm S350 grade steel.

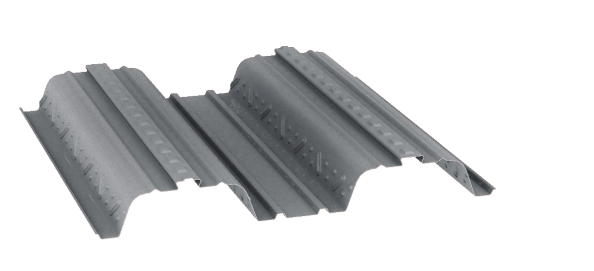

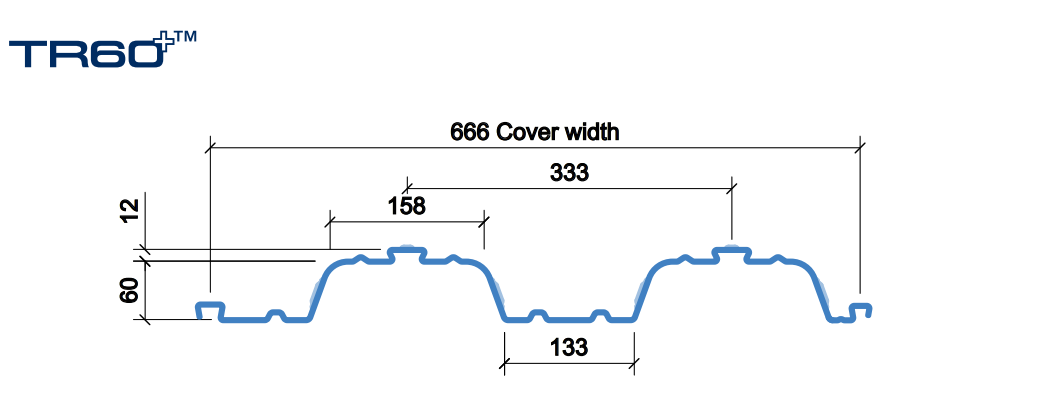

TR60+ Deck Profile

Benefits

  • Unpropped spans in excess of 3.5m
  • Reduced concrete volume
  • Engineered embossment design for optimum deck/concrete composite action
  • Fire rating up to 4 hours
  • Soffit 'Wedge Nut' fixings available with load capacity of up to 1kN.
  • Acoustic Robust Solution - Refer 'Robust Standard Details'.
  • The steel cross sectional area of this profile makes it the most economical option of the two available profiles
